PERIBOARD-835

PERIBOARD-835

Product Manual

Driver-software

Bindtool





Steps to connect the PERIBOARD-835 through the software

  1. Install the configuration software from Link
  2. Turn on the PERIBOARD-835 by switching it to the "On" position.
  3. If the USB-wireless connector for the PERIBOARD-835 is currently plugged into your PC/laptop, unplug it.
  4. Connect the PERIBOARD-835 to your PC/laptop using a direct wired connection. Do not use a hub for this connection.
  5. Press and set on Keyboard indicator from PERIBOARD-835.
  6. Launch the software.
  7. If you see the message, "Connect a Perixx device to access the software", unplug the wired connection, then re-plug it and restart the software.
  8. If you see the text "PERIBOARD-835", press "Enter".
  9. You can now configure the PERIBOARD-835 using the software.





How to Connect PERIBOARD-835?

  • USB 2.4GHz Mode
    1. Turn on the connection switch on the left side of the back of the keyboard.
    2. Plug the USB receiver into the USB port on the computer device.
    3. Press the connection button marked with an arrow on the right side of the keyboard to switch to USB connection mode.
    4. Done!
  • Windows Bluetooth Mode
    1. Turn on the connection switch on the left side of the back of the keyboard.
    2. Press the connection button marked with an arrow on the right side of the keyboard to switch to one Bluetooth Mode that you want to choose.
    3. Long press the same button for 3 seconds
    4. Go to Windows Setting, Start -> Setting -> Device -> Bluetooth & other devices.
    5. Add "Ergo PB-835" on the list. if it is not on list, please press the connection button again for 3 seconds.
    4. Done!
  • Mac Bluetooth Mode
    1. Turn on the connection switch on the left side of the back of the keyboard.
    2. Press the connection button marked with an arrow on the right side of the keyboard to switch to one Bluetooth Mode that you want to choose.
    3. Long press the same button for 3 seconds
    4. Go to Setting, Menu -> System Preferences -> Bluetooth.
    5. Add "Ergo PB-835" on the list. if it is not on list, please press the connection button again for 3 seconds.
    4. Done!





How do you assign a macro on your PERIBOARD-835 without a driver?

  1. Please select a profile (M1, M2, M3, or M4; Default: M1).
  2. Press the MR button to record the key press sequence.
  3. Choose the key you want to assign the macro to, e.g., Q (You can customize up to 10 keys per profile). The MR button will stay lit once you've selected the key.
  4. Input the desired combination directly, e.g., Ctrl+C.
  5. After setting the combination, press the MR button again to save the macro.

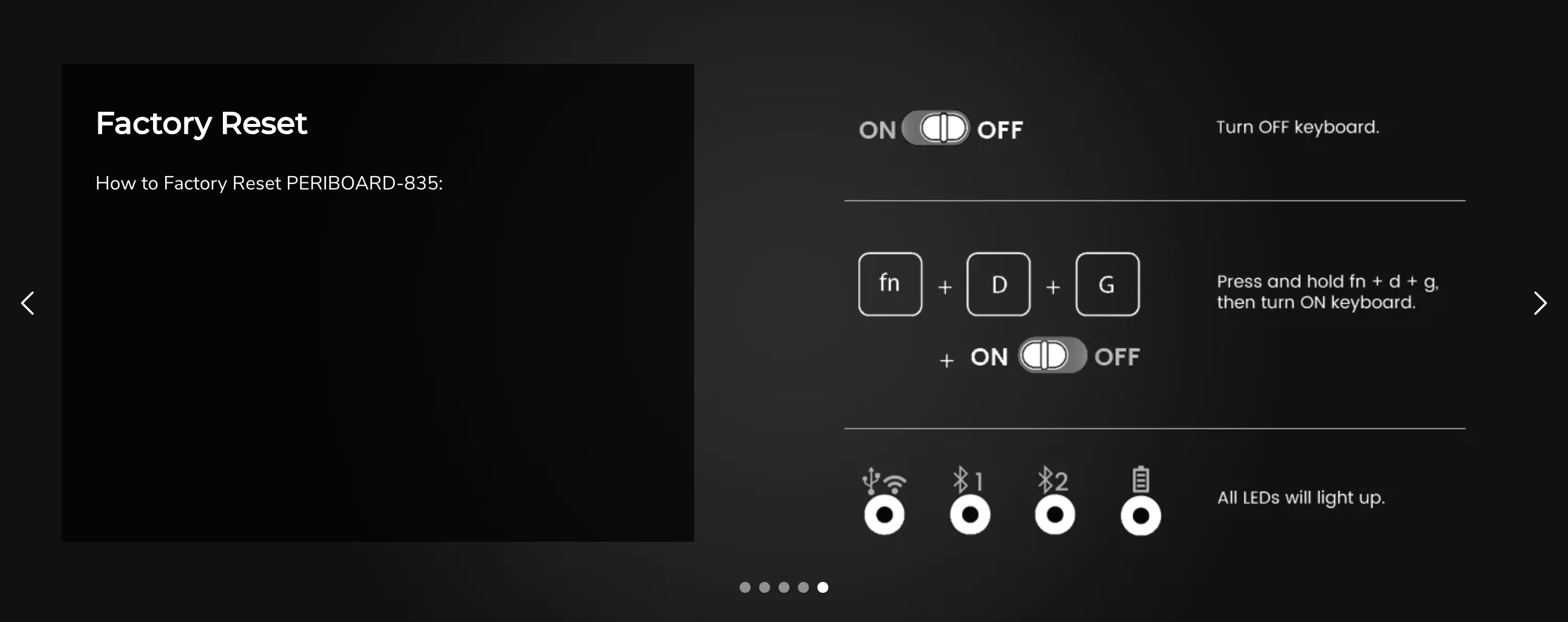

How do you reset PERIBOARD-835?

  1. Turn OFF PERIBOARD-835
  2. Press and hold Fn + D + G buttons and turn ON the keyboard at the same time
  3. All indication LED should be blinking for 1 second

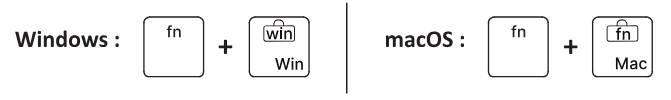

How do you switch PERIBOARD-835 between Windows and Mac OS?


  • Windows: Press "Fn" + "Win"
  • Mac OS: Press "Fn" + "Mac"





How to rebind the receiver of PERIBOARD-835?

1. Download Bindtool

2. Unzip the Bindtool

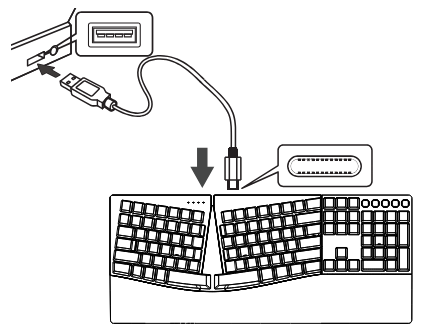

3. Plug in the keyboard cable


4. Insert the receiver


5. Turn on the keyboard power switch

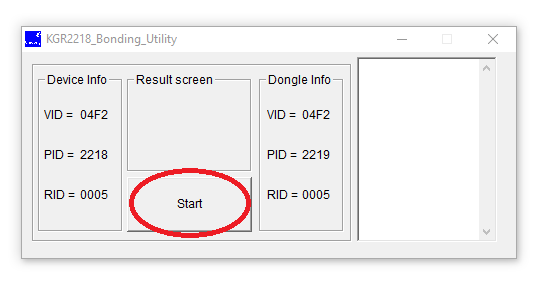

6. Run the Bindtool (KGR2218) and press START button.


7. If the Bindtool displays "PASS", you successfully finished rebinding process.

8. Disconnect the cable and receiver, turn off the keyboard and reconnect the receiver and turn on the keyboard again to be ready to use.





Is the backlight brightness of PERIBOARD-835 adjustable?

  • Please use "F5 and F5 " to adjust the backlight brightness and toggle it on/off.





How to add the language layout on my keyboard?

1. Open Settings: Click on the Start menu, then select the "Settings" gear icon. Alternatively, you can press Win + I on your keyboard to open Settings directly.
Navigate to Time & Language: In the Settings menu, click on “Time & language.”
2. Select Language & region: On the sidebar, click on “Language & region.” Here you'll see the languages currently installed.
3. Add a Language: If the language you would like to add is not already listed:

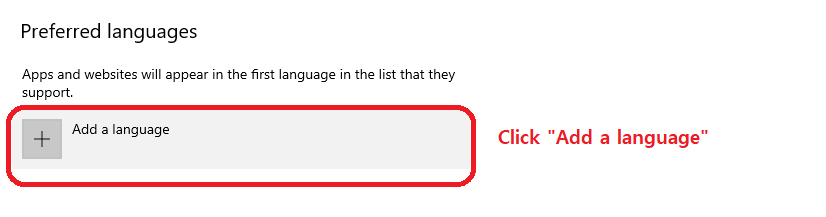

Click on “Add a language.”

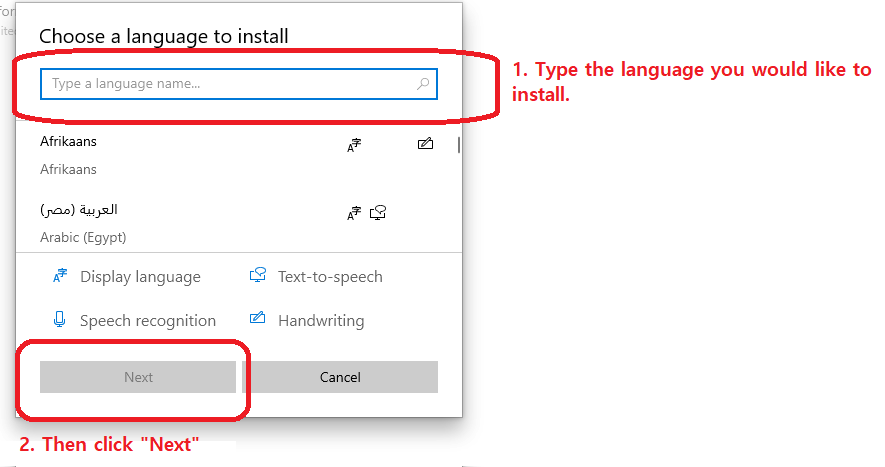

4. Search for and select the language you want. then, click "Next" and then "Install" to add the language pack.


5. Configure Keyboard Layout: Once the language is added, click on the three dots (…) next to it under the “Preferred languages” section.
6. Select “Language options.” Then, Under “Keyboards,” click “Add a keyboard” and select the keyboard layout you prefer.


7. Switch Between Keyboard Layouts: You can switch between keyboard layouts by clicking on the language icon in the taskbar (near the clock) or by using the shortcut Win + Space to cycle through the available keyboard layouts.





PERIBOARD-835 won’t type after computer restart, what shall I do?

1. Check Battery: PERIBOARD-835 relies on batteries for power. An insufficient battery charge can lead to it not functioning correctly. To check the battery, ensure the batteries are inserted correctly, matching the positive and negative ends with the markings inside the battery compartment. If the batteries are rechargeable, charge them fully before use. If they are disposable, try replacing them with fresh ones to see if this resolves the issue. Some keyboards have battery indicators or software that shows the current battery level. Check these to ensure the batteries are adequately charged.

2. Test on Another Computer: To identify the problem, try connecting the PERIBOARD-835 to another computer. This step is crucial as it helps isolate the issue. If the keyboard works fine on another system or computer, the problem might be with your original computer's hardware or software configurations. However, if it doesn't work on any computer, the keyboard itself might be faulty.

3. Direct Connection to Computer Ports: Often, issues with USB devices can stem from unstable connections, especially when using USB hubs or extension cables. Disconnect the PERIBOARD-835 from any USB hubs or extension cables. Connect it directly to one of your computer's USB ports. Preferably, use a USB port on the back of a desktop computer, as these ports are directly connected to the motherboard and usually provide a more stable connection than front-side ports or ports on laptops.

4. Check and Update Drivers: Remove any previously installed keyboard drivers, then restart your computer. This can resolve conflicts between the keyboard software and your system. For this process, go to device manager and check the driver in Keyboards


  • Select “Scan for hardware changes. This will allow your operating system to refresh the new hardware for plug and play.

  • After refreshing the hardware list, please select “Update driver’ to check the any updates.

  • Select the option “Search automatically for driver” check driver to update or reinstall for your operating system. After your operating system confirms to reinstall the driver, your mouse is confirmed that its driver is ready to operate.

5. Contact Customer Support: If, after following all the above steps, your PERIBOARD-835 still doesn't work, it's time to seek further assistance. Reach out to customer support for personalized troubleshooting and potential repair or replacement options. Visit the official website and navigate to the support section to find contact information or a support request form. Provide a detailed description of the issue and the steps you've already taken to try to resolve it.





How can I address issues like double letters on PERIBOARD-835 keyboard?



  • To address issues like double letters on your keyboard, you can try the following steps:
  1. Open Settings: Click on the Start menu, then select the "Settings" gear icon. Alternatively, you can press Win + I on your keyboard to open Settings directly.

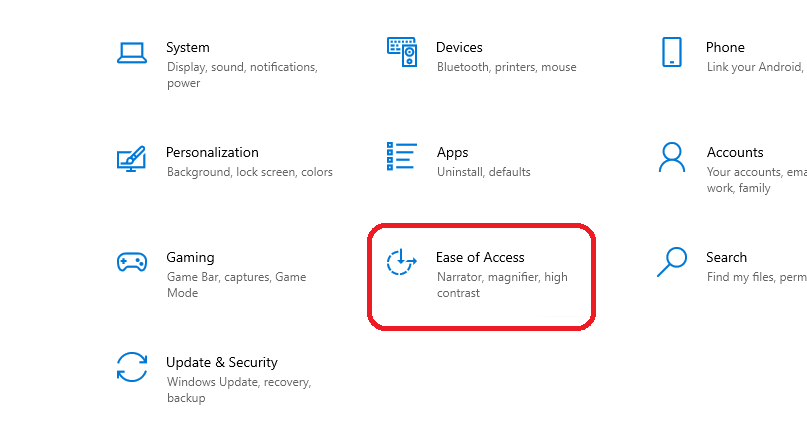

  2. Navigate to Ease of Access: In the Settings menu, click on “Ease of Access.”

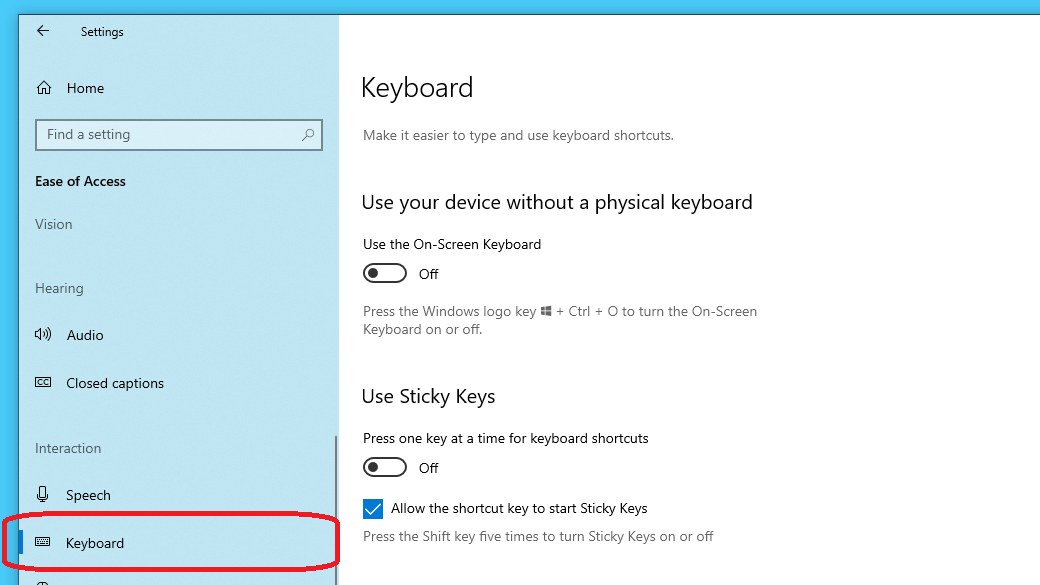

  3. Scroll down the left side to find the "Keyboard" from "Interaction" section in "Ease of Access."

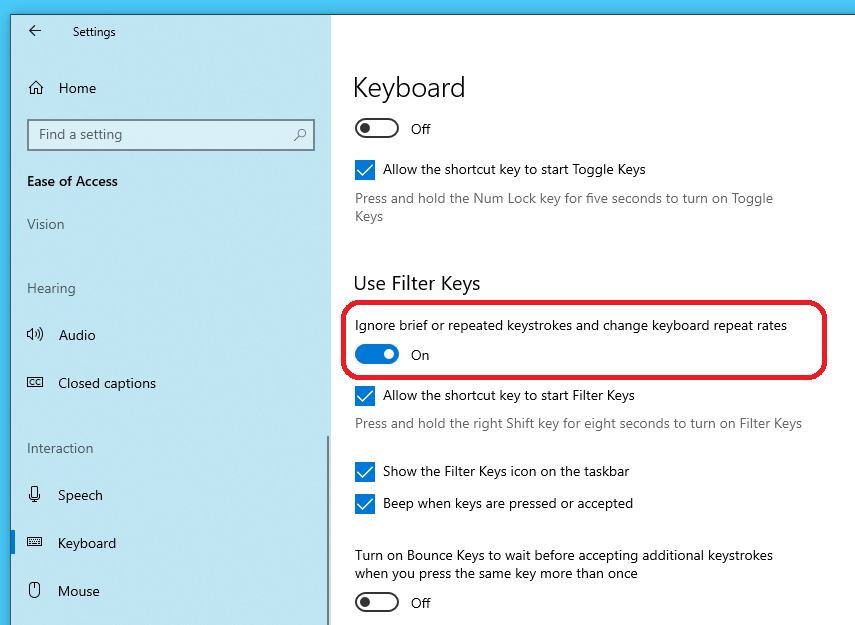

  4. Please turn on "Ignore brief or repeated keystrokes and change keyboard repeat rates" on "Use Filter Keys" section in Keyboard.
  • Test the keyboard to see if the issue is resolved. If not, you can try cleaning the keys.





How to clean a Key on your keyboard?



  1. Unplug or turn off the keyboard.
  2. Identify the key causing the issue (e.g., the 'Y' key), then gently pry up the key using a small, flat instrument (flat-head screwdriver) or your nail. Insert the tool or your nail under the edge of the keycap and carefully lift it up. Be gentle to avoid damaging the keycap or the switch.
  3. Use the swab to clean any sticky areas on and around the key switch. Make sure to clean the underside of the keycap as well. If there is visible debris, use a dry cotton swab or compressed air to remove it before using the alcohol.
  4. Reinsert the key back into its original place by gently pressing it down until it snaps back into place.
  5. Check the keys to see if the issue is resolved.





Why isn't my Windows key working?

If your Windows key is not responding, it might be due to the accidental activation of the Win-lock key. The Win-lock key is located above the Backspace key on your keyboard and has a padlock symbol on it. To re-activate the Windows key, press "Win-lock" key. You can also activate the Win-lock key the same way. Check the backlit of Win-lock key, if the Win-lock is active. After deactivating the Win-lock, try pressing the Windows key again.
