PERIBOARD-615

PERIBOARD-615

Product Manual





How to connect PERIBOARD-615?

Wired Connection

  1. Plug PERIBOARD-615 into a computer
  2. Switch to “Wired” on the back side of the keyboard.

Wireless Windows Bluetooth

  1. Switch to “Bluetooth” on the back side of the PERIBOARD-615
  2. Press the button to choose one Bluetooth channel that you want to connect
  3. Long press the button for 10 seconds
  4. Go to Start -> Settings -> Devices -> Bluetooth & other devices

Wireless Mac Bluetooth

  1. Switch to “Bluetooth” on the back side of the PERIBOARD-615
  2. Press the button to choose one Bluetooth channel that you want to connect
  3. Long press the button for 10 seconds
  4. Go to Setting, Apple Menu -> System Preferences -> Bluetooth.
  5. If there’s no PERIBOARD-615 on the list, please press the Bluetooth pairing button again for 10 seconds.





Is the USB port on the wireless PERIBOARD-615 compatible with a gaming mouse?

  • Yes, it will support any USB device without the need for external power.





How do the 4 Hubs of PERIBOARD-615 work?

  • The 4 Hubs can only be used when PERIBOARD-615 is plugged into the computer (whether in wired or in Bluetooth mode).





Where can I purchase the polymer battery of PERIBOARD-615?

  • If the item is under a 12-month warranty, we will provide a new replacement.
  • Please note that the included battery is not for resale, and opening the keyboard housing will void the warranty.





How to check the battery level of PERIBOARD-615?

  • PERIBOARD-615 includes a low battery indicator on the upper right side, indicated by a red flashing light when the battery is running low. Additional details can be found in the keyboard's user manual.







Is the backlight brightness of PERIBOARD-615 adjustable?

  • Please use "Fn+F8" to adjust the backlight brightness and toggle it on/off.







Is the “Alt Gr” key of PERIBOARD-615 also used as the context menu key?

  • No, the Alt Gr key is used as an alternative Alt key or as the access key to the bottom-right symbols, such as the Euro symbol, with the US International Layout.







Key functions of PERIBOARD-615 not acting properly:

  • follow steps to resolve key issue.
  • Direct USB connection, avoid Hub or Adapter.
  • Clean under keys with pressurized air.
  • Access Computer device settings, find 'Sticky Keys' in Advanced Keyboard settings.





How to add the language layout on my keyboard?

1. Open Settings: Click on the Start menu, then select the "Settings" gear icon. Alternatively, you can press Win + I on your keyboard to open Settings directly.
Navigate to Time & Language: In the Settings menu, click on “Time & language.”
2. Select Language & region: On the sidebar, click on “Language & region.” Here you'll see the languages currently installed.

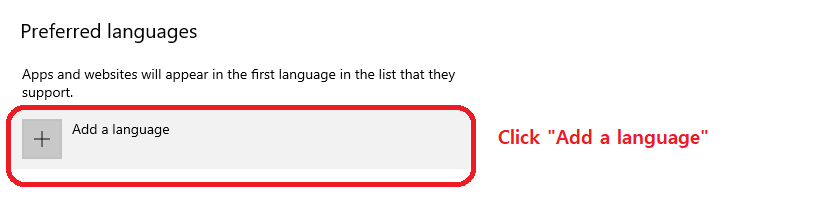

3. Add a Language: If the language you would like to add is not already listed:
Click on “Add a language.”

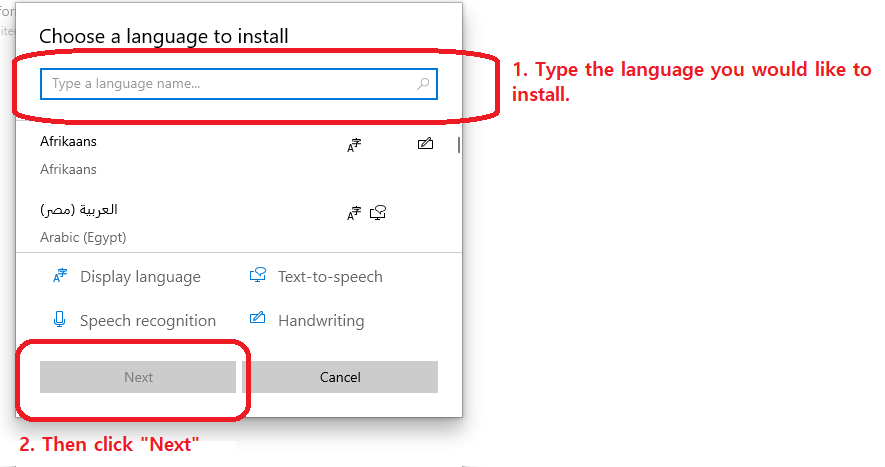

4. Search for and select the language you want. then, click "Next" and then "Install" to add the language pack.


5. Configure Keyboard Layout: Once the language is added, click on the three dots (…) next to it under the “Preferred languages” section.
6. Select “Language options.” Then, Under “Keyboards,” click “Add a keyboard” and select the keyboard layout you prefer.


7. Switch Between Keyboard Layouts: You can switch between keyboard layouts by clicking on the language icon in the taskbar (near the clock) or by using the shortcut Win + Space to cycle through the available keyboard layouts.





PERIBOARD-615 won’t type after computer restart, what shall I do?

1. Check Battery: PERIBOARD-615 relies on batteries for power. An insufficient battery charge can lead to it not functioning correctly. To check the battery, ensure the batteries are inserted correctly, matching the positive and negative ends with the markings inside the battery compartment. If the batteries are rechargeable, charge them fully before use. If they are disposable, try replacing them with fresh ones to see if this resolves the issue. Some keyboards have battery indicators or software that shows the current battery level. Check these to ensure the batteries are adequately charged.

2. Test on Another Computer: To identify the problem, try connecting the PERIBOARD-615 to another computer. This step is crucial as it helps isolate the issue. If the keyboard works fine on another system or computer, the problem might be with your original computer's hardware or software configurations. However, if it doesn't work on any computer, the keyboard itself might be faulty.

3. Direct Connection to Computer Ports: Often, issues with USB devices can stem from unstable connections, especially when using USB hubs or extension cables. Disconnect the PERIBOARD-615 from any USB hubs or extension cables. Connect it directly to one of your computer's USB ports. Preferably, use a USB port on the back of a desktop computer, as these ports are directly connected to the motherboard and usually provide a more stable connection than front-side ports or ports on laptops.

4. Check and Update Drivers: Remove any previously installed keyboard drivers, then restart your computer. This can resolve conflicts between the keyboard software and your system. For this process, go to device manager and check the driver in Keyboards

  • Select “Scan for hardware changes. This will allow your operating system to refresh the new hardware for plug and play.

  • After refreshing the hardware list, please select “Update driver’ to check the any updates.

  • Select the option “Search automatically for driver” check driver to update or reinstall for your operating system. After your operating system confirms to reinstall the driver, your mouse is confirmed that its driver is ready to operate.

5. Contact Customer Support: If, after following all the above steps, your PERIBOARD-615 still doesn't work, it's time to seek further assistance. Reach out to customer support for personalized troubleshooting and potential repair or replacement options. Visit the official website and navigate to the support section to find contact information or a support request form. Provide a detailed description of the issue and the steps you've already taken to try to resolve it.





How can I address issues like double letters on PERIBOARD-615 keyboard?

  • To address issues like double letters on your keyboard, you can try the following steps:
  1. Open Settings: Click on the Start menu, then select the "Settings" gear icon. Alternatively, you can press Win + I on your keyboard to open Settings directly.

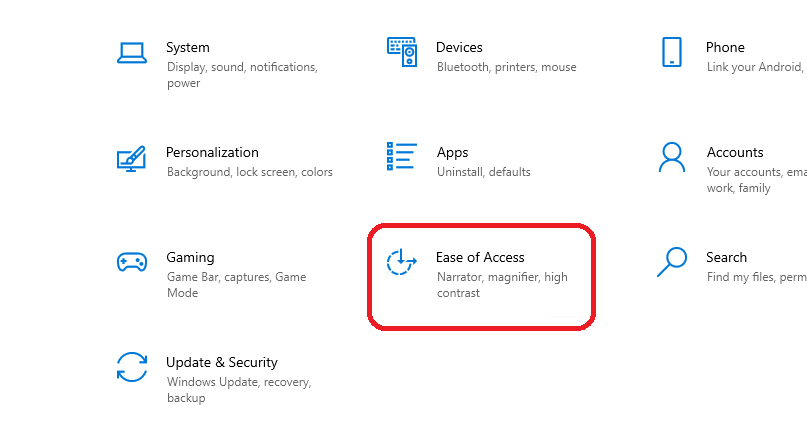

  2. Navigate to Ease of Access: In the Settings menu, click on “Ease of Access.”

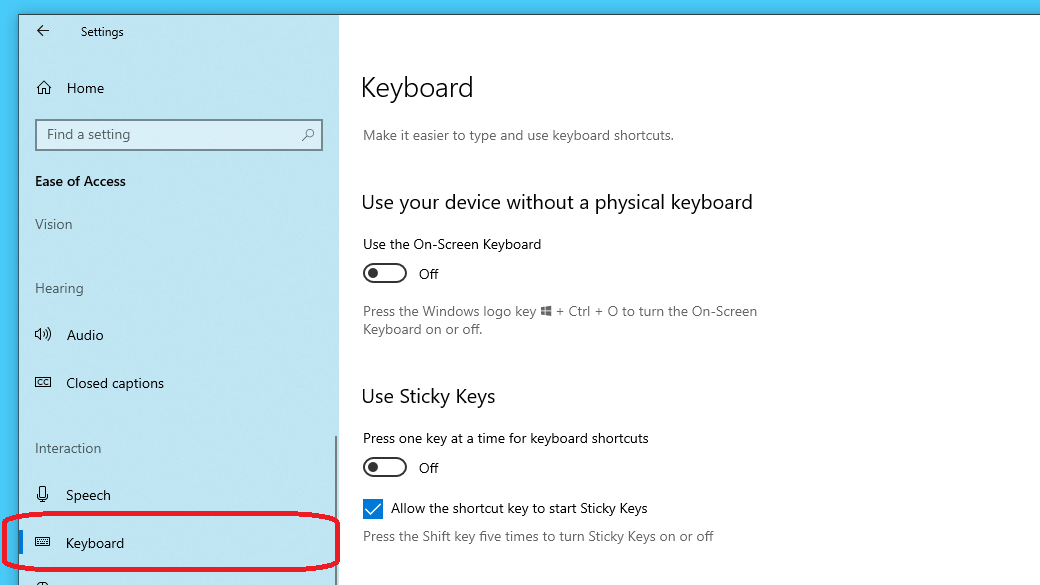

  3. Scroll down the left side to find the "Keyboard" from "Interaction" section in "Ease of Access."

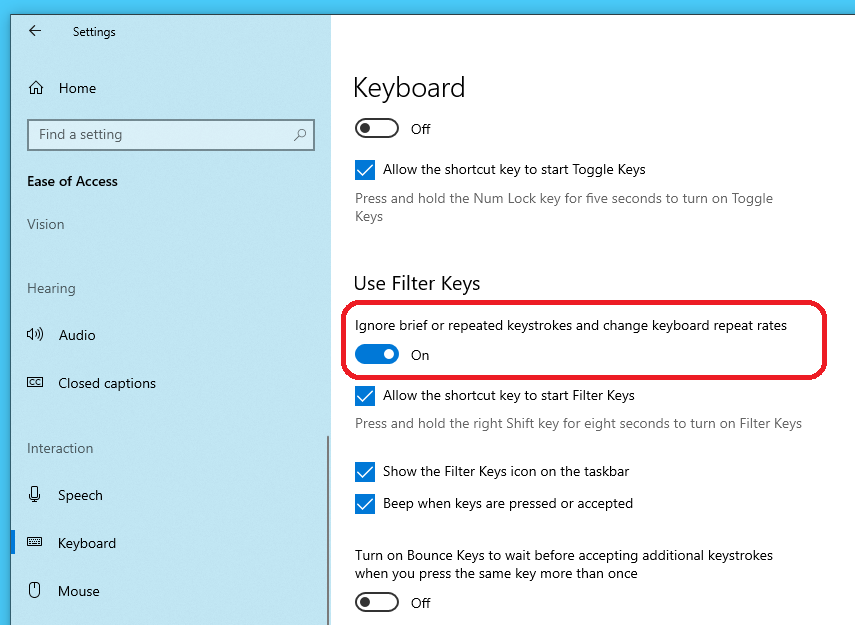

  4. Please turn on "Ignore brief or repeated keystrokes and change keyboard repeat rates" on "Use Filter Keys" section in Keyboard.
  • Test the keyboard to see if the issue is resolved. If not, you can try cleaning the keys.





How to clean a Key on your keyboard? (scissor type)

1. Unplug or turn off the keyboard.
2. Hold the can of compressed air upright. Aim the nozzle at an angle under the keycap and use short bursts of air to dislodge any debris or dust. Be careful not to tilt the can too much to avoid propelling liquid.
3. Take a soft brush or a clean, dry toothbrush and gently brush around the keycap to loosen any remaining debris. You can also use a small handheld vacuum designed for electronics to suck up any loose particles.
4. If you have a manual pump blower (like those used for cleaning camera lenses), aim it at the base of the keycap and give several strong pumps to further dislodge any dust.
5. Dampen a microfiber cloth with a small amount of isopropyl alcohol (not dripping). Wipe the surface of the keycap and the surrounding area to remove any sticky residues or fingerprints.
6. Give the keycap area one more blast with compressed air to ensure all loosened debris is cleared away.
7. Check the keys to see if the issue is resolved.

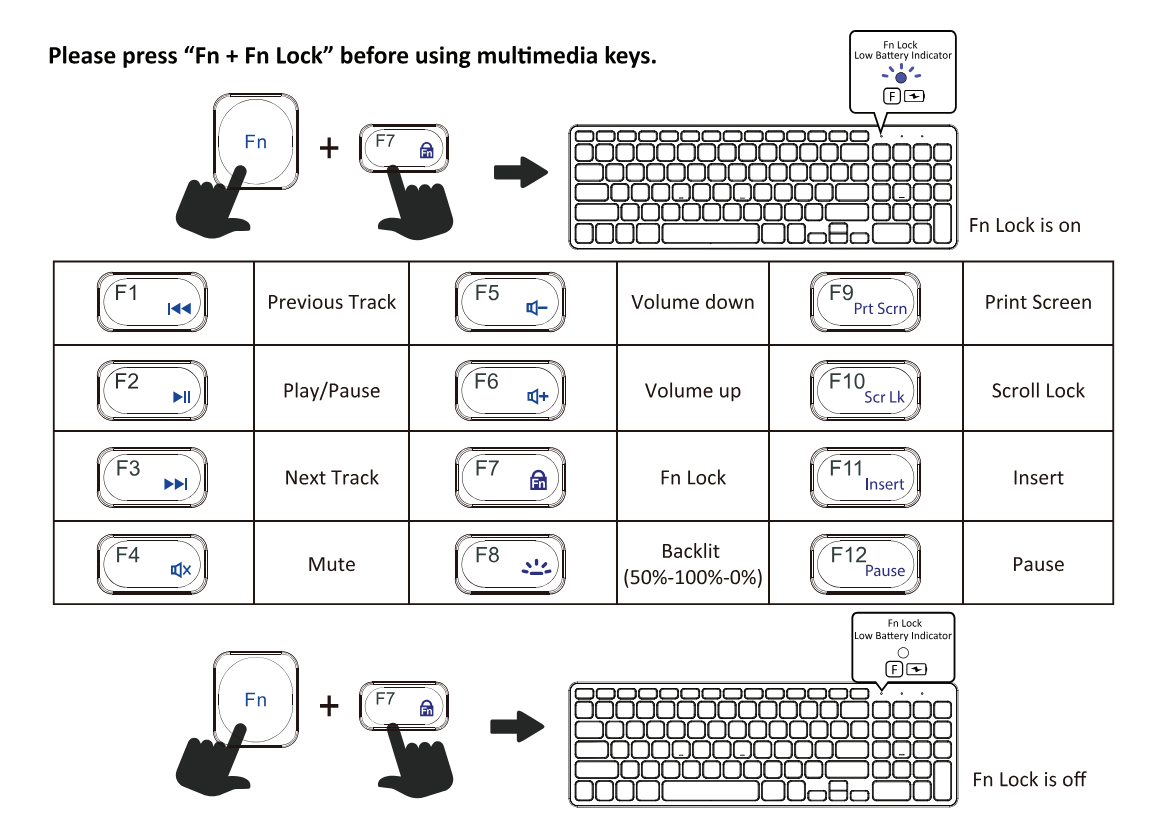

How to Use the Fn-Lock Key for Multimedia keys?

The Fn-Lock key toggles between multimedia functions and standard function key (F1-F12) functions on your keyboard. When activated, it enables multimedia actions like adjusting volume or brightness. When deactivated, it restores the traditional F1 to F12 functions.

Press the "Fn + Fn Lock" key then Fn Lock is on:
