Product Manual

Will PERIBOARD-505 work with windows 10?

• PERIBOARD-505 is programmed to work with Windows 10. You don't have to install a driver since it is equipped with Plug & Play, so you only have to plug it into your device and PERIBOARD-505 will work.

PERIBOARD-505 won’t type after computer restart:

1. Test on another computer to confirm issue.
2. Directly connect device to computer ports.

PERIBOARD-505 Typing Multiple Letters:

• If PERIBOARD-505 is typing multiple letters per key press, this issue can often be resolved by adjusting some settings. Follow these steps:

1. Open the "Control Panel" and click on "Ease of Access Center."
2. Click on "Make Keyboard Easier to Use."
3. Check the option "Turn on Filter Keys" under "Make it easier to type" and then click "Apply."

• If the problem persists:

1. Go to "Keyboard Properties" in the "Control Panel."
2. Adjust the "Repeat rate" to a faster setting, then click "Apply" and "Ok."

• In many cases, this issue is related to operating system settings rather than hardware malfunction. We suggest you try the following steps:

1. Connect PERIBOARD-505 to another Windows computer to check if the problem persists.
2. Ensure that PERIBOARD-505 is connected directly to the computer's USB ports, avoiding the use of external hubs or adapters.

Key functions of PERIBOARD-505 not acting properly:

• follow steps to resolve key issue.

1. Direct USB connection, avoid Hub or Adapter.
2. Clean under keys with pressurized air.
3. Access Computer device settings, find 'Sticky Keys' in Advanced Keyboard settings.

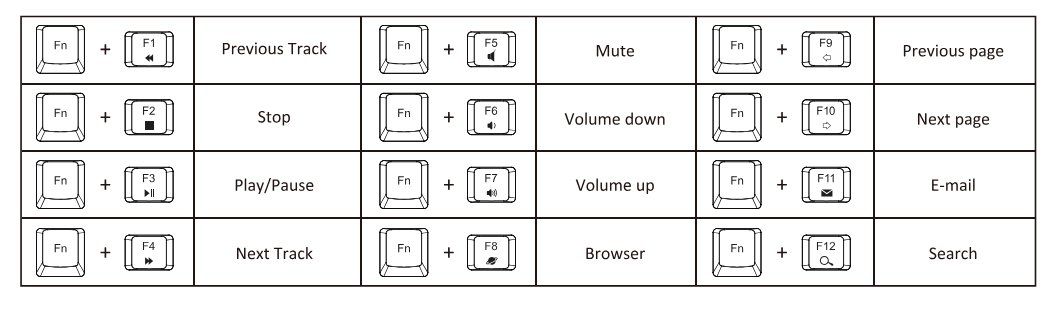

Do you need to press fn key to use media pause play stop while using PERIBOARD-505?

• Yes, the multimedia keys in PERIBOARD-505 work only in combination with the Fn key.

Will PERIBOARD-505 be recognized and work if Windows 10 booted into safe mode?

• Yes, PERIBOARD-505 will be recognized and works with Windows 10 in safe mode.

Can PERIBOARD-505 be used with a smart tv?

• For the smart TV, you can only use PERIBOARD-505 if it supports the HID (Human Interface Device). You may do a simple test to plug any keyboard into the TV and see if it is working. If it is working, then our keyboard will also work too. If not, that means the tv doesn't support HID.

Do you sell a hard shell travel case for PERIBOARD-505?

• We don't have this kind of traveling accessories yet.

How to add the language layout on my keyboard?

1. Open Settings: Click on the Start menu, then select the "Settings" gear icon. Alternatively, you can press Win + I on your keyboard to open Settings directly.
Navigate to Time & Language: In the Settings menu, click on “Time & language.”
2. Select Language & region: On the sidebar, click on “Language & region.” Here you'll see the languages currently installed.
3. Add a Language: If the language you would like to add is not already listed:
Click on “Add a language.”

4. Search for and select the language you want. then, click "Next" and then "Install" to add the language pack.

5. Configure Keyboard Layout: Once the language is added, click on the three dots (…) next to it under the “Preferred languages” section.
6. Select “Language options.” Then, Under “Keyboards,” click “Add a keyboard” and select the keyboard layout you prefer.

7. Switch Between Keyboard Layouts: You can switch between keyboard layouts by clicking on the language icon in the taskbar (near the clock) or by using the shortcut Win + Space to cycle through the available keyboard layouts.

Keyboard won’t type after computer restart, what shall I do?

1. Test on Another Computer: To identify the problem, try connecting the Keyboard to another computer. This step is crucial as it helps isolate the issue. If the keyboard works fine on another system or computer, the problem might be with your original computer's hardware or software configurations. However, if it doesn't work on any computer, the keyboard itself might be faulty.

2. Direct Connection to Computer Ports: Often, issues with USB devices can stem from unstable connections, especially when using USB hubs or extension cables. Disconnect the Keyboard from any USB hubs or extension cables. Connect it directly to one of your computer's USB ports. Preferably, use a USB port on the back of a desktop computer, as these ports are directly connected to the motherboard and usually provide a more stable connection than front-side ports or ports on laptops.

3. Check and Update Drivers: Remove any previously installed keyboard drivers, then restart your computer. This can resolve conflicts between the keyboard software and your system. For this process, go to device manager and check the driver in Keyboards

• Select “Scan for hardware changes. This will allow your operating system to refresh the new hardware for plug and play.

• After refreshing the hardware list, please select “Update driver’ to check the any updates.

• Select the option “Search automatically for driver” check driver to update or reinstall for your operating system. After your operating system confirms to reinstall the driver, your mouse is confirmed that its driver is ready to operate.

4. Contact Customer Support: If, after following all the above steps, The Keyboard still doesn't work, it's time to seek further assistance. Reach out to customer support for personalized troubleshooting and potential repair or replacement options. Visit the official website and navigate to the support section to find contact information or a support request form. Provide a detailed description of the issue and the steps you've already taken to try to resolve it.

How can I address issues like double letters on the keyboard?

• To address issues like double letters on your keyboard, you can try the following steps:

1. Open Settings: Click on the Start menu, then select the "Settings" gear icon. Alternatively, you can press Win + I on your keyboard to open Settings directly.
2. Navigate to Ease of Access: In the Settings menu, click on “Ease of Access.”
3. Scroll down the left side to find the "Keyboard" from "Interaction" section in "Ease of Access."
4. Please turn on "Ignore brief or repeated keystrokes and change keyboard repeat rates" on "Use Filter Keys" section in Keyboard.

• Test the keyboard to see if the issue is resolved. If not, you can try cleaning the keys.
